A record-breaking vault is only as valid as the precision of the ground it starts from. For UK facility managers, the difference between a competition-ready runway and a disqualified record often comes down to the exactness of your pole vault trough installation. You're likely aware that even a minor alignment error or a slight deviation from the 1:1000 longitudinal inclination can render an entire facility non-compliant with World Athletics standards. It's a frustrating reality when a high-value asset fails to meet the rigorous demands of official competition because of a technical oversight during the groundworks phase.
We understand that you need infrastructure that remains reliable under heavy use without becoming a continuous maintenance burden. This guide provides the technical clarity required to master the precision steps for a safe and durable installation. You'll learn how to manage critical drainage requirements to prevent water pooling, whilst ensuring that heavy-duty galvanised steel troughs are integrated flush with your surfacing. We will examine the specific dimensions for regulation boxes and the essential methods for securing lids to eliminate trip hazards, ensuring your facility remains a high-performance environment for years to come.
Table of Contents
The Role of the Pole Vault Trough in Athletics Infrastructure
The pole vault trough is the technical heart of any athletics runway. It serves as the primary anchor point where an athlete’s horizontal velocity is converted into vertical lift. Because this component is subjected to immense physical force during the plant, its stability is non-negotiable. A professional pole vault trough installation ensures the unit is set with absolute precision, providing a secure base that won't shift or vibrate under impact. This stability is essential for the athlete's confidence and the overall safety of the facility.
We prioritise heavy-duty galvanised steel as the industry standard for these installations. The UK climate is notoriously unforgiving, and a trough buried in the ground is constantly exposed to moisture and soil acidity. Galvanisation provides a robust barrier against rust, ensuring the structural integrity of the box remains intact for decades. Without this protection, internal corrosion can lead to sharp edges or structural failure, both of which pose significant risks to vaulters. Adhering to pole vault equipment standards is the only way to guarantee that your facility meets the requirements for both training and official competition.
There's a distinct difference between basic training troughs and competition-grade boxes. Competition boxes must feature a specific 105-degree angle on the back plate and precise tapering to meet World Athletics and UKA regulations. Installing a non-compliant box can result in the disqualification of records and may require a costly replacement if the facility intends to host sanctioned events. We focus on getting the specifications right during the initial groundworks to avoid these logistical headaches later.
Flush-Fitting vs Recessed Lids
The choice of lid depends entirely on your runway’s surface. Flush-fitting lids are the practical choice for runways with concrete or asphalt surrounds, where the metal lid sits level with the hard standing. However, for facilities utilising a tartan track, recessed lids are the superior option. These trays allow a layer of the runway's polyurethane surfacing to be installed directly into the lid. This creates a seamless, non-slip finish that matches the rest of the track, effectively removing trip hazards whilst the trough is not in use. This level of integration is a hallmark of high-quality external sport equipment installation.
Material Standards and Longevity
Longevity in athletics infrastructure is built on structural thickness. A trough made from thin-gauge metal will eventually warp or buckle under the lateral pressure of the surrounding ground and sub-base. We specify heavy-duty steel that maintains its shape even in shifting soil conditions. This structural rigidity, combined with deep-tank galvanisation, drastically reduces long-term maintenance costs for schools and leisure centres. When a pole vault trough installation is handled with this level of technical foresight, it becomes a one-time investment rather than a recurring expense.
Compliance and World Athletics Technical Requirements
Compliance isn't a suggestion; it's the baseline for safety and legal protection in UK athletics facilities. Local authorities and schools must adhere to the World Athletics technical requirements to ensure their infrastructure is fit for purpose. A 1-degree error in the back plate angle might seem negligible on paper, but for a vaulter travelling at speed, it changes the energy transfer of the pole. This can cause the pole to "shoot" or fail to bend correctly, which is a significant safety risk. It's a liability concern. If an injury occurs on non-compliant equipment, insurance providers often scrutinise the installation records and certification status of the facility to determine if standards were met.
Precise Dimensions for Official Competition

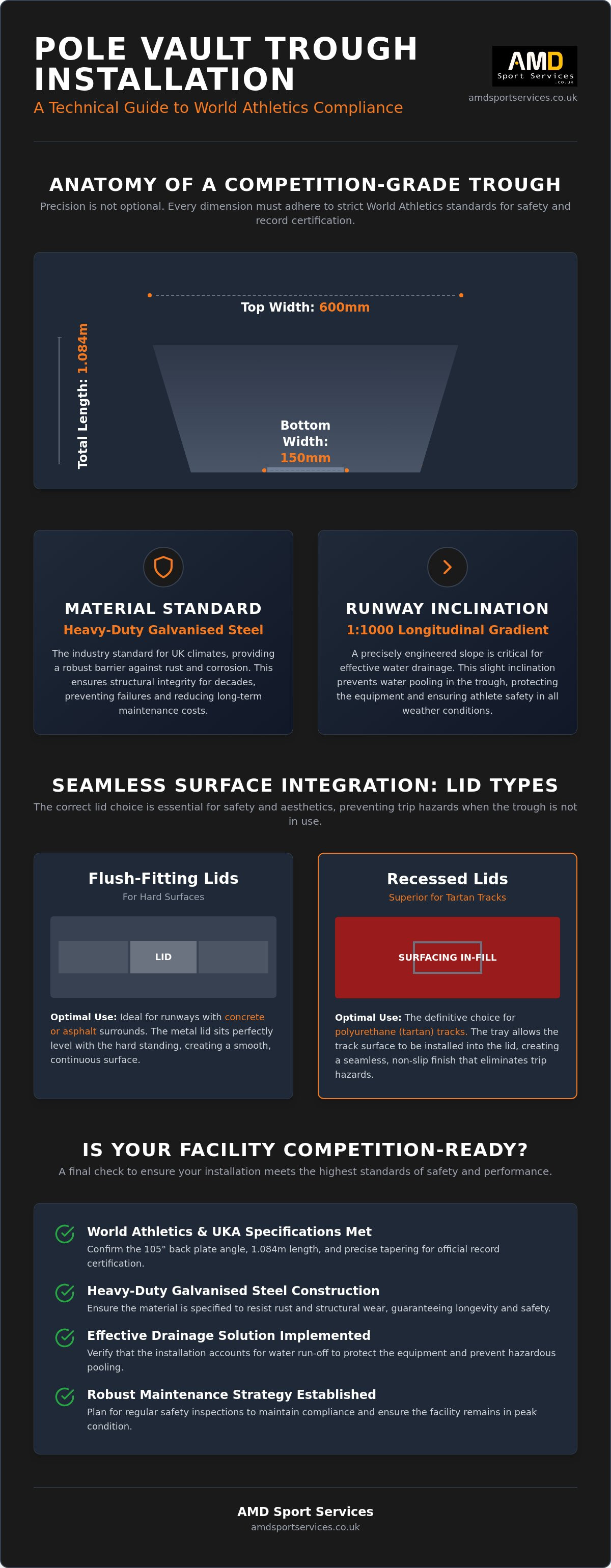

The internal geometry of the trough is strictly defined. A regulation box has a standard length of 1.084m. The width at the front, which is the opening at ground level, must be exactly 600mm, tapering down to 150mm at the bottom of the stop board. The back plate, or stop board, must sit at an angle of 105 degrees relative to the base. Even minor deviations beyond the allowed tolerances can lead to the disqualification of records set at the venue. Professional pole vault trough installation requires constant measurement during the concrete pour to ensure these dimensions don't shift as the material sets.
The Critical Nature of Box Alignment
Alignment is the final piece of the compliance puzzle. The trough must be perfectly centred with the 1.22m wide runway and aligned precisely with the midpoint of the landing cushion. We also account for the runway's inclination, which must not exceed 1:1000 in the running direction. If the box is slightly skewed, it creates "pole twist". This occurs when the pole doesn't travel in a straight vertical plane, forcing the athlete's body into an unbalanced position mid-air. We use high-precision levelling tools to check both the horizontal and vertical planes during the setting process. Ensuring this level of accuracy is why many facilities opt for professional external sport equipment installation rather than relying on general groundworks. This methodical approach ensures the facility remains safe and competition-ready for years.
The Pole Vault Trough Installation Process: A Step-by-Step Technical Guide
Successful pole vault trough installation relies on a synchronised schedule between groundworks and surfacing specialists. It's a common mistake to treat the trough as an afterthought; yet its placement dictates the entire runway's geometry. We approach this task with a coordinated mindset, ensuring the equipment is set before the final layers of the runway are applied. This prevents the need for invasive remedial work later, which can compromise the integrity of the track surfacing.
Before any excavation begins, a thorough site survey is mandatory. We check for underground drainage and utilities whilst assessing soil stability. If the ground is prone to heave or subsidence, additional reinforcement is required to support the concrete foundation. "Setting out" involves marking the exact centreline of the 40m runway, ensuring the trough sits perfectly square to the landing area. General builders often lack the precision tools or the understanding of World Athletics tolerances required for this level of accuracy. We use laser-guided levelling to ensure the trough doesn't just look right but is technically compliant with the Track and Field Facilities Manual.
Groundwork and Sub-base Preparation
Excavation must reach depths that accommodate both the galvanised steel unit and a dedicated drainage layer. We pour a reinforced concrete "pad" to create a permanent foundation. This prevents the trough from sinking over time, a common failure in poorly installed facilities. Compacting the surrounding sub-base is equally critical. It stops lateral shifting under the weight of the runway's foundation layers, ensuring the trough remains an immovable anchor for the athlete's pole.
Anchoring and Levelling for Stability
Most professional troughs feature integrated anchor points designed to be submerged in concrete. We secure these using the "pour and check" method. This involves constantly monitoring the level as the concrete sets, adjusting for any microscopic movement. We also factor in the precise thickness of the final polyurethane surface, typically allowing for a 13mm to 15mm finish. This ensures the top edge of the trough is perfectly flush with the final track level. Precision during this phase is what separates a standard external sport equipment installation from a competition-grade facility that can host official UKA events.
Solving Critical Challenges: Drainage and Surface Integration
Standing water is the primary cause of premature trough deterioration and athlete slippage. Even with high-quality galvanisation, a trough that sits in a permanent pool of water will eventually suffer from surface slickness and structural fatigue. For the vaulter, a wet box is a significant safety hazard that can lead to the pole slipping during the plant. A professional pole vault trough installation must prioritise water management to ensure the facility remains usable in all British weather conditions. This involves more than just selecting a trough with holes; it requires a functional connection to the wider site infrastructure.
Integrating the trough with polyurethane track surfacing requires technical precision. The joint where the metal edge meets the synthetic track is a common point of failure. If the bond is weak, the track material can lift or peel, creating a trip hazard exactly where the athlete needs maximum stability. We manage this by applying specialist primers to the metal edges before the surfacing is laid. This ensures a chemical bond that withstands the high-impact forces of a vaulting approach.
Implementing Effective Drainage Systems
Every regulation trough is manufactured with drainage tubes, typically 50mm in diameter. These must be connected to the facility’s main drainage system or a dedicated soakaway. We often find that general contractors leave these tubes unconnected, leading to water backing up within the concrete foundation. In facilities where mains drainage is inaccessible, we install deep gravel sumps directly beneath the trough to allow for natural percolation. Routine maintenance is also essential; we recommend clearing debris from the drainage holes at the start of every season to prevent blockages caused by track grit or organic matter.
Seamless Surface Integration
The final height of the trough must account for the safety box collar, a mandatory requirement for UKA competitions. These padded collars sit around the trough opening to protect athletes from the hard edges of the box. If the surfacing is even a few millimetres too high or low, the collar won't sit flush, creating an uneven transition for the pole. We hand-finish the polyurethane surfacing around the trough perimeter to ensure a level result that meets World Athletics tolerances. This bespoke craftsmanship prevents the "lip" that often leads to surface delamination. If you need to ensure your facility meets these rigorous standards, you can view our full range of external sport equipment installation services.
Professional Installation and Safety Maintenance for UK Facilities
The completion of a pole vault trough installation is only the start of a facility’s operational life. Over time, factors such as ground heave, heavy usage, and seasonal temperature shifts can affect the precision of the initial setting. We treat athletics infrastructure as a long-term asset that requires methodical oversight. Adopting a "Seasoned Practitioner" approach means we don't just look for obvious damage; we assess the subtle shifts in alignment and structural integrity that general maintenance staff might overlook. This proactive stance is essential for schools and local authorities who are accountable for the safety of their athletes and the compliance of their venues.
Regular sports equipment safety inspections are the most effective way to manage these risks. Our national team brings over 20 years of industry experience to every site visit, providing the technical honesty required to keep facilities running at peak performance. We understand the bespoke challenges of UK athletics tracks, from the specific drainage needs of the Midlands to the soil stability issues found in coastal regions. This veteran expertise ensures that your equipment remains a safe, competition-ready anchor point for every vaulter.
Specialist Safety Inspections and Compliance Checks
Annual audits are a critical component of facility management. During these checks, we verify that the trough remains perfectly level and that no structural warping has occurred. We pay close attention to the condition of trough lids, particularly recessed versions that hold track material. If the surfacing within the lid begins to perish or shrink, it creates a trip hazard on the runway. We also inspect the drainage outlets to ensure they haven't become blocked by track grit, which we've found to be a common cause of internal corrosion in older steel boxes. These inspections ensure your venue continues to meet the requirements for hosting sanctioned UKA events.
Upgrading Existing Pole Vault Runways
Not every facility requires a completely new pole vault trough installation to meet modern standards. In many cases, we can refurbish existing infrastructure by clearing blocked drainage, realigning the box, or replacing damaged lids. A significant modern upgrade involves the addition of compliant box collars. These safety pads are now a mandatory requirement for many competitions, providing essential protection for athletes during a "short" plant. We specialise in retrofitting these collars to older troughs, ensuring they sit flush with the runway and don't interfere with the pole's movement. If your facility requires a national installation or a comprehensive maintenance quote, you can contact us to discuss our external sport equipment installation services.
Ensuring Long-Term Performance for Your Athletics Facility
Mastering the technical requirements of a pole vault trough installation is the only way to guarantee a safe, competition-ready environment. Success relies on more than just setting steel in concrete; it requires absolute alignment with World Athletics standards and a robust approach to integrated drainage. By ensuring the trough is perfectly flush with your track surfacing and committing to regular maintenance, you protect both your capital investment and your athletes' safety.
We bring over 20 years of expertise in high-performance athletics surfacing and infrastructure to every project. Our team provides national coverage across the UK, ensuring that schools and leisure centres meet the most rigorous UKA and World Athletics compliance standards. Whether you're building a new runway or upgrading an existing facility with modern box collars, we offer the technical honesty and veteran craftsmanship your project deserves.
Book a professional installation or safety inspection with AMD Sport Services to ensure your facility remains a benchmark for excellence. We look forward to helping you create a world-class space where your athletes can perform with total confidence.
Frequently Asked Questions
Do I need a specific type of trough for a tartan track versus a cinder track?
The internal dimensions of a regulation trough remain the same regardless of the track type, but the lid and installation method differ significantly. For a tartan track, you must use a recessed lid that allows the polyurethane surfacing to be laid directly into the tray for a seamless finish. Cinder tracks or asphalt surrounds typically utilise flush-fitting lids that sit level with the hard standing without the need for integrated surfacing.
How long does a professional pole vault trough installation typically take?
A standard pole vault trough installation usually takes two to three days to complete, excluding the necessary time for concrete curing. The process begins with a site survey and excavation on the first day, followed by the precise setting of the trough and its drainage connections. You must then allow the concrete foundation to reach its full design strength before the final track surfacing can be applied around the unit.
Can an existing pole vault trough be moved or realigned?
Realigning an existing trough is a difficult task because the unit is permanently anchored into a reinforced concrete pad. If the box has shifted or was installed incorrectly, the surrounding foundation usually needs to be excavated so the unit can be reset. It's often more practical to refurbish the existing unit in situ if the issues are minor, such as drainage blockages or surface lifting at the edges.
What is a pole vault box collar and is it mandatory for schools?
A box collar is a specialised padding system that surrounds the trough opening to protect athletes from the hard metal edges. These collars are mandatory for all UKA-sanctioned competitions and are highly recommended for schools to ensure they meet modern safety standards. They provide essential cushioning for the athlete during the plant and help the facility remain compliant with current insurance requirements.
How do I prevent my pole vault trough from filling with water during winter?
Effective water management depends on connecting the trough’s integrated drainage tubes to a functional soakaway or the facility's main drain. You should also ensure that the drainage holes are cleared of grit and organic debris at the start of the autumn to prevent blockages. Keeping a well-fitted lid in place whilst the runway is not in use will further reduce the volume of rainwater entering the box.
What are the most common mistakes made during DIY trough installation?
The most frequent errors include failing to align the trough perfectly with the runway centreline and neglecting to account for the 13mm to 15mm thickness of the final track surfacing. Many non-specialist contractors also fail to provide a proper concrete foundation, which leads to the trough sinking over time. These mistakes often result in the facility failing its safety inspection or requiring expensive remedial work to achieve competition certification.
Are there different troughs for indoor and outdoor athletics facilities?
Yes, indoor troughs are designed for installation into sports hall floors and don't require the same heavy-duty galvanisation or external drainage tubes as outdoor versions. Outdoor troughs are built to withstand the UK climate and include specific features for water management and integration with tartan tracks. Indoor units often feature different lid mechanisms to ensure they sit flush with timber or synthetic indoor sports flooring.
How often should a pole vault trough be inspected for safety compliance?
You should arrange for a specialist safety inspection at least once every twelve months. These annual audits are essential for checking structural integrity, drainage functionality, and any subtle shifts in alignment that could affect the facility's certification. Regular inspections ensure that schools and leisure centres remain compliant with UKA standards and that their liability insurance remains valid for sanctioned events.
