Pole Vault Trough Replacement UK: The Complete Facility Manager’s Guide
A pole vault trough is far more than a simple metal box embedded in the ground; it's the critical point where extreme physical force meets structural integrity. When a vaulting pole hits the back of that box, the equipment must be perfectly stable and compliant with rigorous safety standards. If the metal has started to corrode or the surrounding concrete has shifted, a professional pole vault trough replacement UK project becomes a matter of urgency. You aren't just looking at a technical fault; you're looking at a serious safety hazard that could compromise athlete welfare and your facility's official certification.
We understand the pressure of managing specialised track repairs whilst keeping an eye on strict budgets and complex regulations. It's a difficult balance to maintain. This guide provides the clarity you need to ensure your facility meets all UK Athletics and World Athletics requirements. We'll walk through the specific signs of wear to look for during inspections, the technical steps of a precision installation, and how to choose materials that survive the British climate. This overview provides a clear roadmap to restoring your track's safety with minimal disruption to your scheduled events.
Table of Contents
The Importance of Timely Pole Vault Trough Replacement
The pole vault trough serves as the primary interface between the athlete and the facility infrastructure. Throughout the history of pole vaulting, the design of this component has evolved to handle immense kinetic energy. Today, it must remain perfectly rigid under the force of a vaulter's plant. If the trough is compromised, that energy isn't absorbed correctly, leading to equipment failure or structural damage to the surrounding runway. It's a critical point of failure that requires constant monitoring.
In the UK, our climate presents unique challenges for athletics infrastructure. Repeated cycles of freezing and thawing can lead to frost heave, where water trapped beneath the trough expands and shifts the unit. This often results in the trough no longer being flush with the track surface, creating a trip hazard and violating safety standards. Maintaining a high-performance facility requires a balance between athlete safety and adherence to UK Athletics (UKA) standards. When the structural integrity of the seating fails, a professional pole vault trough replacement UK project is the only way to restore the site to a safe, competitive standard.

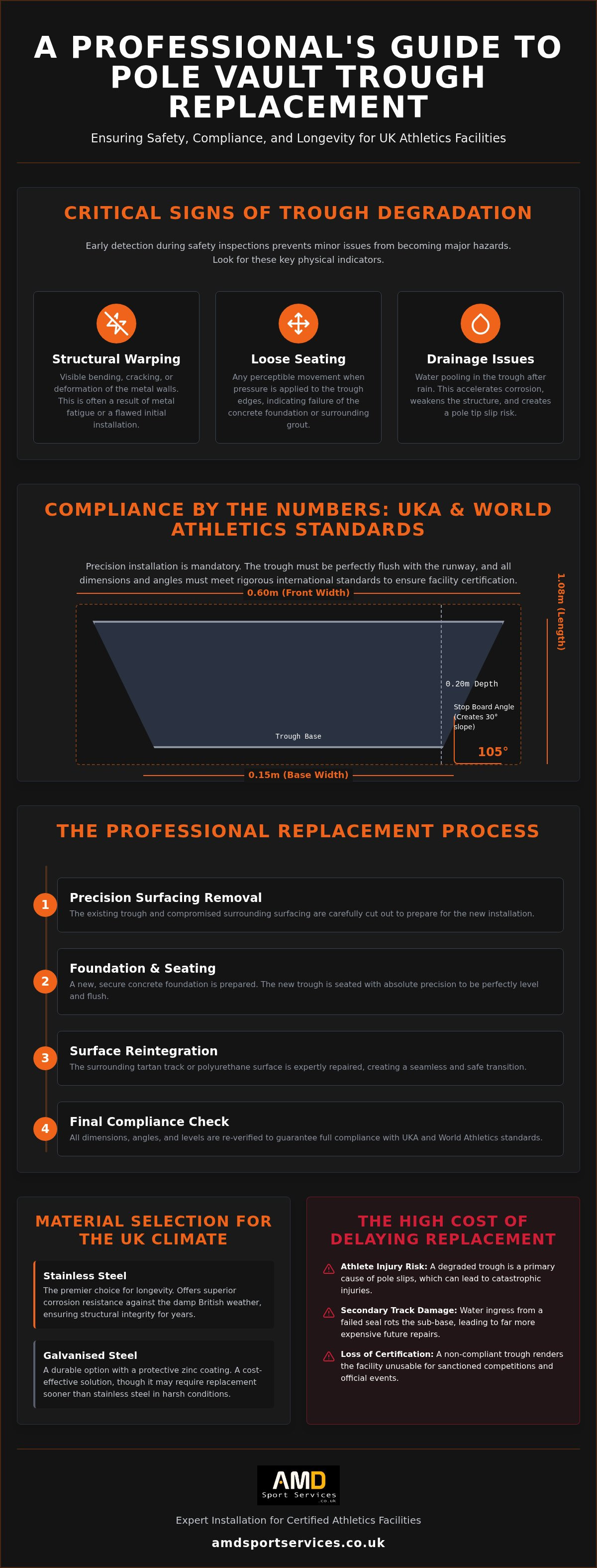

Identifying Signs of Trough Failure
Detecting issues early can prevent the need for more extensive track repairs. Facility managers should look for specific physical indicators during regular safety inspections:
Structural warping: Visible bending or cracking of the metal walls, often caused by metal fatigue or improper initial installation.
Loose seating: Any perceptible movement when pressure is applied to the trough edges, suggesting the concrete foundation or surrounding grout has failed.
Drainage issues: Water pooling in the bottom of the trough after rain, which accelerates corrosion and creates a slip risk for the pole tip.
The Risks of Delayed Maintenance
Postponing a necessary pole vault trough replacement UK project carries significant liability. A degraded trough is a primary cause of pole slips, which can lead to catastrophic injuries if the vaulter loses control during the ascent. Beyond the immediate safety concerns, a failing trough often causes secondary damage to the expensive tartan track or polyurethane surfacing. Once the bond between the trough and the track is broken, water ingress begins to rot the sub-base, leading to much higher refurbishment costs. Finally, if the trough dimensions or stability fall outside of official regulations, the facility may lose its certification for competitive meets, rendering the track unusable for sanctioned events.
Understanding UK Athletics (UKA) and World Athletics Standards
Compliance isn't a mere administrative hurdle; it's the technical foundation of a fair and safe competition. UK Athletics (UKA) and World Athletics set precise geometric requirements for the vaulting box that must be followed during any installation. A standard trough must measure 1.08m in length, with a front width of 0.6m tapering to 0.15m at the base of the stop board. The depth is equally specific, reaching 0.20m at the deepest point. Most critically, the base must sit at a 105-degree angle to the stop board, which creates the essential 30-degree slope relative to the horizontal runway. If these angles are off by even a fraction during a pole vault trough replacement UK project, the facility risks losing its competitive license.
Precision installation ensures the top edges of the trough sit perfectly flush with the surrounding runway surface. Any protruding lip or recessed gap can catch a pole tip or cause an athlete to stumble during their approach. For competition-grade facilities, materials must be rigid and non-corrosive. If you're managing an ageing site, facility managers often benefit from a professional safety inspection to confirm if existing equipment still meets these rigorous technical thresholds.
UKA Rulebook Compliance for Schools and Clubs
Schools and local clubs may not always host international meets, but they must still adhere to the UKA Rulebook to ensure athlete safety during training. The "stop board" at the back of the trough must be maintained in peak condition; it cannot be soft, hollow, or corroded, as this directly affects the energy return to the athlete's pole. Furthermore, safety padding is mandatory around the trough area. This padding must cover any hard edges of the box that aren't already protected by the landing mats, reducing the risk of injury during a missed plant.
World Athletics Certification Nuances
For tracks aiming for Class 1 or Class 2 status, the World Athletics Standards are the definitive benchmark for certification. These standards mandate specific drainage requirements at the base of the trough to prevent water accumulation. This is vital in the UK, where standing water can lead to dangerous pole slips during events. If a national or international record is set at your venue, officials will verify the trough's dimensions immediately after the event. If the installation is found to be non-compliant, the record will not be ratified, which can be devastating for the athlete and damaging to the venue's reputation.
The Pole Vault Trough Replacement Process: A Step-by-Step Guide
Successful pole vault trough replacement UK projects rely on a chronological workflow that protects the integrity of the surrounding athletics track. This isn't a task for general contractors; it requires specialist knowledge of track surfacing and civil engineering. The process begins with a technical assessment to determine if the failure is purely mechanical or if the sub-base has been compromised by water ingress. Once the scope is defined, we follow a methodical sequence to ensure the new installation meets all competitive standards.
Before any excavation begins, we perform a precision cut of the existing tartan or polyurethane surfacing. This "surgical" approach is vital to prevent ragged edges and ensures the final reinstatement is seamless. We then move through the following technical stages:
Site Preparation: Marking out the exact dimensions to ensure the new trough aligns perfectly with the runway centreline.
Controlled Demolition: Breaking out the old unit and its concrete seating whilst protecting the underlying base layers.
Component Installation: Positioning the new galvanised or stainless steel trough into the excavated area.
Structural Grouting: Pouring high-strength concrete to create a permanent, vibration-resistant seat.
Excavation and Foundation Preparation
Removing the old unit requires care to avoid disturbing the runway base layers. If the sub-base is agitated, it can lead to sinkage in the months following the repair. We excavate to a specific depth that allows for a reinforced concrete foundation, providing the necessary mass to absorb the impact of the vaulting pole. During this stage, we ensure the drainage outlet at the base of the trough is perfectly aligned with the existing track drainage system. This prevents the water accumulation issues that often lead to premature failure in older installations.
Precision Levelling and Surfacing
Installation accuracy is non-negotiable. We use laser levels to ensure the trough edges sit perfectly flush with the runway surface, as even a 2mm deviation can trigger a safety failure during an inspection. After the concrete seating has fully cured, we apply specialised tartan track surfacing to the trough perimeter. This involves a multi-layer process of primer, rubber crumb, and polyurethane binder to match the existing track texture and colour. The final stage involves a rigorous safety test and snagging process to verify the 30-degree angle and stop board stability before the facility is handed back for use.
Selecting the Right Materials: Steel vs. Modern Alternatives
Choosing the correct material for a pole vault trough replacement UK project is a decision that dictates the facility's maintenance schedule for the next two decades. Whilst various options exist, the selection usually comes down to a balance between initial budget and long-term durability. Galvanised steel remains the industry standard for most UK clubs and schools. It offers a high degree of structural rigidity and is cost-effective, provided the protective zinc coating remains intact. However, in the high-moisture environment of a British winter, any deep scratches in the coating can lead to internal oxidation and eventual structural failure.
Stainless steel is the premium alternative, offering superior resistance to corrosion without the need for additional coatings. It is particularly suited for outdoor facilities located in coastal areas or sites with poor natural drainage. For managers looking for a modern approach, Glass Reinforced Plastic (GRP) troughs are becoming more common. These synthetic units are entirely rust-proof and lightweight, though they must be engineered with specific internal bracing to ensure they don't flex under the impact of a vaulter's plant. Regardless of the box material, the stop board at the rear should be made of a dense, high-impact material that protects the pole tip from splintering whilst providing a firm base for the vault.
Durability in the UK Climate
The British weather is notoriously hard on athletics infrastructure. A trough must withstand constant exposure to damp soil and the physical pressure of frost heave. Steel units are prone to rust if water is allowed to pool at the base, which is why we prioritise precision drainage alignment during every installation. Regular maintenance involves checking for signs of oxidation and ensuring the drainage holes remain clear of debris. Synthetic options require less surface maintenance but must be checked for UV degradation and structural cracking over time. Choosing a high-specification material during your initial external sport equipment installation significantly reduces the likelihood of needing premature repairs.
Performance and Athlete Safety
From an athlete's perspective, the stiffness of the trough is paramount. If a trough's walls flex during the plant, it absorbs energy that should be used to propel the vaulter upwards. This can be disorienting and potentially dangerous for the vaulter. The material must also be compatible with standard vaulting pole tips, which are usually made of hard rubber or plastic. To extend the life of any material, we recommend using a bespoke trough cover during the off-season. These covers prevent the accumulation of leaves, ice, and standing water, protecting the stop board and the metal casing from unnecessary environmental stress.
Professional Installation with AMD Sport Services
At AMD Sport Services, we view a pole vault trough replacement UK project as a precision engineering task rather than a simple equipment swap. Retailers often provide off-the-shelf units without considering the unique sub-base conditions or the specific drainage requirements of a site. Our approach is fundamentally different. We assess the entire structural context of the runway to ensure the new installation remains stable for decades. By focusing on bespoke craftsmanship, we address the specific mechanical challenges that standard products cannot solve, such as irregular concrete seating or non-standard drainage depths.
Often, trough failure coincides with wider track wear. We frequently integrate these works with a long jump runway installation or general track refurbishment to provide a cohesive solution for the facility. This consolidation reduces overall mobilisation costs and ensures that all jumping event areas meet the same high standards of safety and performance. Everything we do is underpinned by our commitment to athlete welfare. We conduct rigorous sports equipment safety inspections before and after every project. This ensures that every component, from the stop board to the surrounding safety surfacing, complies with current UKA guidelines. We understand that schools and leisure centres operate on tight schedules; our teams work efficiently to ensure minimal disruption to your training programmes.
Our Seasoned Practitioner Approach
We pride ourselves on technical honesty. If a trough can be safely refurbished without a full excavation, we'll tell you. Our communication with school boards and local authorities is direct and focused on the best technical outcome for the budget. We don't use polished sales pitches; we provide matter-of-fact assessments based on over 20 years of industry experience. The goal is always a tangible, long-lasting result that protects your capital investment and ensures the safety of every vaulter who uses the facility.
Comprehensive Athletics Infrastructure Support
Our expertise extends beyond the outdoor track. We provide specialist support for indoor facilities, including sports hall netting systems and equipment maintenance. Once your new trough is installed, we can establish an ongoing maintenance programme to keep the drainage clear and the seating secure. This proactive care is the most effective way to avoid the costs of premature replacement. We also assist with the technical documentation required for UKA track certification, ensuring your facility is ready for official competition and records.
Ensuring Long-Term Track Compliance and Safety
Maintaining a high-specification athletics facility requires a commitment to technical precision. A failing vaulting box isn't just a maintenance issue; it's a structural risk that can lead to athlete injury and the loss of competition certification. By prioritising a professional pole vault trough replacement UK project, you protect the longevity of your tartan track and ensure full compliance with current UKA and World Athletics standards. Precision in the initial installation prevents the costly secondary damage often caused by water ingress or frost heave.
AMD Sport Services provides national UK coverage for schools and leisure centres, specialising in institutional sports facility compliance. Our expertise spans both indoor and outdoor athletics infrastructure, ensuring your equipment survives the British weather. We pride ourselves on technical honesty and a seasoned practitioner approach to every installation. If you're concerned about the stability or drainage of your current equipment, it's safer to act before a failure occurs.
Contact AMD Sport Services for a Professional Trough Inspection to secure the future of your vaulting facility. We look forward to helping you maintain a safe, high-performance environment for your athletes.
Frequently Asked Questions
How often should a pole vault trough be inspected for safety?
A pole vault trough should be inspected at least once a year as part of a wider sports equipment safety inspection. It's best practice to conduct these checks before the start of the competitive athletics season to ensure compliance with UKA standards. You should also perform visual checks after periods of heavy frost or flooding, as these conditions can cause the concrete seating to shift or the metal to corrode prematurely.
Can a pole vault trough be repaired without a full replacement?
Minor issues like a loose stop board or blocked drainage can often be repaired without a full pole vault trough replacement UK project. However, if the metal walls have warped or the concrete foundation has failed, a full replacement is usually the only safe option. We provide technical assessments to determine if the unit's structural integrity is compromised, ensuring you don't invest in temporary fixes for a terminal problem.
What are the official UKA dimensions for a competition pole vault trough?
The official UKA dimensions for a competition-grade trough are 1.08m in length with a front width of 0.6m tapering to 0.15m at the stop board. The unit must reach a depth of 0.20m at its deepest point. These measurements are critical for facility certification. The base must also maintain a specific 105-degree angle to the stop board to provide the mandatory 30-degree slope relative to the horizontal runway.
How long does the replacement process typically take for an athletics track?
The physical replacement of a pole vault trough typically takes between three and five working days, depending on weather conditions. This timeline includes the precision removal of the old unit, the excavation of the foundation, and the curing time for the new concrete seating. We aim to minimise disruption to training schedules by organising works during off-peak periods or school holidays. Final surfacing reinstatement usually takes place once the concrete has fully set.
Do I need to replace the surrounding tartan track when replacing the trough?
You don't need to replace the entire athletics track; only the immediate perimeter of the trough requires reinstatement. We use precision cutting techniques to remove a small section of the existing tartan or polyurethane surfacing. Once the new trough is installed, we apply a matching layer of surfacing to create a seamless, flush finish. This targeted approach keeps refurbishment costs manageable whilst maintaining the structural integrity of the wider runway.
What is the best material for a pole vault trough in the UK?
Stainless steel is widely considered the best material for long-term durability in the UK climate due to its natural resistance to rust. Galvanised steel is a more cost-effective alternative that performs well if the protective coating is maintained. Whilst synthetic GRP options are available, metal remains the preferred choice for competition-grade facilities because it provides the necessary stiffness and energy return required by athletes during the vaulting plant.
Is a drainage system mandatory for an outdoor pole vault trough?
A functioning drainage system is mandatory for all outdoor pole vault troughs to prevent water accumulation. Standing water in the box is a significant safety hazard that can cause the pole tip to slip during a vault. During a professional installation, we ensure the trough's drainage outlet is correctly aligned with the track's existing sub-surface drainage system. This prevents the corrosion and frost heave issues that typically lead to structural failure.
How can I protect my pole vault trough during the winter months?
The most effective way to protect your equipment is to use a bespoke trough cover during the winter months. These covers prevent leaves, ice, and debris from blocking the drainage system and protect the metal from constant exposure to the elements. Regularly clearing the surrounding area of standing water also reduces the risk of frost heave, which can shift the unit and cause it to become non-compliant with safety regulations.
